High-Temperature, Heat and Flame, Molten Splash and Weld Splatter Resistant Sleeve & Firesleeve: Silicone Rubber Coated Fiberglass (fibreglass / glassfibre) Sleeve and Sleeve with Velcro
500°F / 260°C continuous rating with weld splatter / molten metal splash protection
Firesleeve High Temperature Heat Fire and Flame Resistant Silicone Rubber Coated Fiberglass Fibreglass Sleeve
Firesleeve with Velcro High Temperature Heat Fire and Flame Resistant

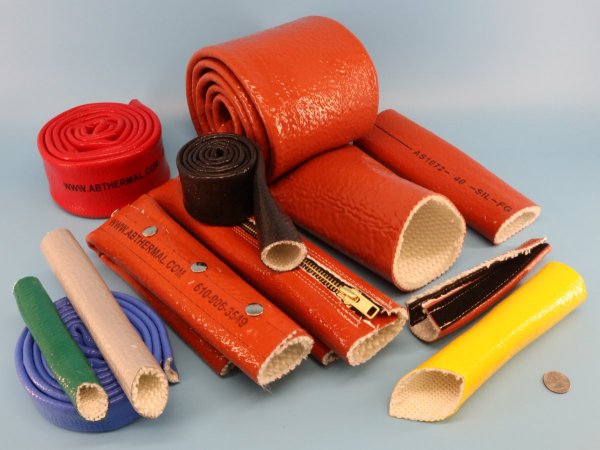

·  Silicone rubber coated fiberglass sleeve (firesleeve), AS1072 aviation firesleeve, firesleeve with velcro, used to protect critical hydraulic hoses, lines, wiring and cables from heat, flame, molten metal splash, slag, welding splatter grinding sparks, contamination, ozone, UV and abrasion.  Fabricated from a thick braided heavy-duty fiberglass (glassfibre) sleeve plus the added protection of a thick layer of high-temperature silicone rubber.
High temperature and heat resistant silicone rubber coated products such as firesleeve withstands Molten Metal Splash & Welding Splatter, 500°F / 260°C continuous exposure; 2200°F / 1205°C for periods up to 15 minutes and short excursions to 3000°F / 1650°C.  In addition to protection, firesleeve, tape and fabric also provide an insulation value of approximately R2.

Very High Temperature Sleeve: Plain & Heat Treated Fiberglass (fibreglass / glassfibre)
1000°F / 537°C continuous rating, high insulation value & excellent personnel protection
Very High Temperature Heat Fire and Flame Resistant Knitted Fiberglass Fibreglass Sleeve
Very High Temperature Heat Fire and Flame Resistant Braided Fiberglass Fibreglass Sleeve
·  Very High Temperature Fiberglass Sleeve is used to protect a wide range of hoses, lines, tubes, wires and cables from high temperatures and flame.  Often the sleeve products are used in layers to provide additional protection and insulation value. Perfect where molten metal exposure is not an issue and a lower cost alternative to silicone rubber coated fiberglass (firesleeve).
Very High Temperature Vermiculite Coated Fiberglass (fibreglass / glassfibre) Sleeve
1500°F / 815°C continuous rating, high insulation value and excellent personnel protection
Extreme High-Temperature Silica Protection Sleeve
Silica protection products with 1800-2300°F / 1260°C continuous rating
High-Temperature PTFE Coated Fiberglass (fibreglass / glassfibre) Sleeve
Fiberglass based materials with PTFE offers high temperature resistance and exceptional chemical resistance
·  550°F / 287°C continuous use in harsh chemical environments. Very High Temperature fiberglass base material is impregnated with PTFE.
· Generally, Silica high-temperature products can be used to 2000°F / 1093°C continuously, and 2300°F / 1260°C for extended periods without degradation. It melts above 3000°F / 1648°C.
·  Silica sleeve; braided and texturized.  Standard wall thickness is 1/16" and heavy wall is 1/8".
·  Very High Temperature fiberglass base material is impregnated with vermiculite dispersant, resulting in a product with higher continuous temperature capability and added abrasion resistance. Vermiculite coated sleeve can be used for the same applications and plain Fiberglass materials, plus it can also be used to protect copper and aluminum tubing.  Suitable for hot work protection during welding operations.
Very High Temperature Heat and Fire Flame Resistant Vermiculite Coated Fiberglass Fibreglass Sleeve
Extreme Temperature and Heat Protection and Fire Flame Resistant Silica Sleeve

Stainless Steel and Inconel Knitted Sleeve
Lighter and lower cost than braided sleeve.  Open knit provides abrasion resistance, electrical grounding and EMI/RFI protection.  Makes a gasket with excellent compression push-back.
High-Temperature Radiant Heat Reflective Aluminum Coated Fiberglass (fibreglass / glassfibre) Sleeve
Fiberglass based with aluminized coating reflects over 95% of the radiant heat striking its surface.
Very High-Temperature Graphite Coated Fiberglass (fibreglass / glassfibre) Sleeve
1000°F / 537°C continuous rating, Graphite offers a no-stick surface for molten materials, along with extreme lubrication and electrical conductivity.
·  Knitted Metal mesh sleeve can be used as the filler in tadpole bulbs.
·  Metal sleeved rope provides excellent abrasion resistance for high cycle kiln doors.
Stainless Steel and Inconel Wire Mesh Rope and Sleeve
Solid Wire Mesh Cable
& Hollow Wire Sleeves
High Temperature Radiant Heat Reflective Aluminized Fiberglass Fibreglass Sleeve
Hose & Cable Abrasion & Blowout Protection Sleeve
Nylon protection sleeve / Nylon protection sleeve with Velcro
·  Our high temperature and heat resistant silicone sponge foam sleeve provides protection and insulation up to 500F / 260C.  Fabricated as a closed-cell low density sponge/foam with a low k factor (high insulation factor).
·  Available as a continuous sleeve and as a slit sleeve for retrofit installation. Color is a dark blue-gray.
·  Custom made in any ID and OD, or standard sizes of .5" ID, .75" ID, 1" ID, 1.25" ID, 1.5" ID with .5" wall thickness.
·   Abrasion resistance for hoses and cables that are moved regularly or flex in operation can be provided by using ScuffSleeveä, available as a sewn sleeve or a sleeve with Velcro for easy retrofit, inspection or replacement.
·   TuffWrapä spiral sleeve is particularily suited for protection of Hoses and Cables on mobile machinery or where continual movement, flex and abrasion are encountered.
ScuffSleeve Nylon Fabric Sleeve for Cable and Hose Abrasion Protection
TuffWrap Plastic Spiral Wrap for Cable and Hoses
Materials that resist catching fire, burn slowly, or retard burning can be described as either "incombustible", "non-flammable", "non-combustible", "fire-resistant" or "fire-retardant".  "Self-extinguishing" materials cease burning once the flame or heat source is removed.  "Fireproof" is understood to mean that an object cannot burn, but few materials are truly fireproof.

Most of our products fall within one or more of the above descriptions: they resist high temperature, flame, fire, molten metal splash and weld splatter very well but may melt with prolonged exposures past their designed maximum continuous operating temperature.  They can also provide OSHA, ANSI-FM & NFPA compliance and personnel protection.

Using our products to retain heat or cold within pipes, hoses, enclosures or equipment helps conserve energy and resources, and reduces operating costs.
AB Technology Group: Keeping Our World Cooler
ä









High Temperature Silicone Rubber Tubing
High-Temperature Silicone Rubber Sleeve / Silicone Sponge Foam Sleeve
Standard temperature up to +500F / 260C and High Temperature up to +550F / 300C
Very High Temperature Small Diameter Sleeve: Plain and Coated Fiberglass (fibreglass / glassfibre)
1000°F / 537°C continuous rating, high insulation value & excellent personnel protection
·  Very High Temperature Small Diameter Fiberglass Sleeve. Available in E Glass and S Glass, specifically for the protection of small diameter wire, cable and tube.
·  Very High Temperature fiberglass base material is impregnated with Graphite.  Results in a very slippery sleeve with a non-stick surface for molten materials.  This sleeve is also electrically conductive.
·  Heat reflective sleeve is fabricated from aluminum coated fiberglass fabric which is slit into tapes, and then sewn closed into sleeves.  Also available with a velcro closure or metallic zipper with Nomex connector tape.
Hose & Cable Abrasion Protection Spiral Wrap
Nylon Hard-shell protection wrap
Stainless Steel Flexible Braided Sleeve
Provides unique protection of hose and cable, adds EMI/RFI protection.  Makes a gasket with excellent compression push-back.

·  Provides abrasion protection to wire, cable and hose, along with blowout protection.
·  Adds EMI/RFI protection
·  304L Stainless steel: also available in 321 and 316.
·  Silicone rubber sleeve for protection of wires, cables and hose from liquids, environmental hazards and contamination.
·  Used as a masking sleeve for protection of plain rods, threaded rods and fasteners in painting processes.
·  Nylon Spiral Wrap for protection of wire, cable and hoses.
High protection and flexibility for mobile equipment in construction, logging, mining.
·  High Temperature version available.


FlameShieldä Abrasion Protection Sleeve

- High temperature, flame and fire protection sleeve
- Molten metal splash and weld splatter protection sleeve
- Insulation sleeve to reduce energy loss of hot or cold lines such as HVAC refrigerant lines
- Insulation sleeve to protect personnel from hot oil & steam lines and meet OSHA requirements
- Primary insulation sleeve for wire and cable protection: UL & CSA approved
500°F: Silicone Rubber Coated
Fiberglass Firesleeve
500°F: Silicone Rubber Sleeve & Sponge
550°F: PTFE Coated Fiberglass Sleeve
650°F: Heat Reflective Aluminized
Fiberglass Sleeve
1000°F: Fiberglass Sleeve
1000°F: Small Diameter Fiberglass Sleeve
1000°F: Graphite Coated Fiberglass Sleeve
1500°F: Vermiculite Coated Fiberglass Sleeve
1800-2300°F: Silica Sleeve
Abrasion Protection:
Nylon Abrasion Protection Sleeve
Nylon & Polyethelyne Spiral Wrap
Stainless Steel Braid Sleeve
·  FlameShieldä Thermal and abrasion protection sleeve & firesleeve
    for wires, cables, hoses, tubes and lines
High Temperature and Heat Protection and Fire Flame Resistant PTFE Coated Fiberglass Sleeve Wire Cable Hose Protection
heat reflecting sleeve for hose wire cable protection
heat reflective aluminum coated fiberglass sleeve
heat reflecting split sleeve with adhesive strip
high temperature heat reflecting aluminum coated fiberglass split sleeve
Very High Temperature Graphite Coated Fiberglass Sleeve Wire Cable Hose Protection
High-Temperature, Heat and Flame Resistant Kevlar Sleeve
320°F / 160°C continuous rating
·  Fabricated from high quality yarns that will not burn and will withstand continuous exposure to 320F / 160C.  Highly cut resistant.

320°F: Kevlar Sleeve
High-Temperature, Heat and Flame Resistant Nomex Sleeve
320°F / 160°C continuous rating
·  Fabricated from high quality yarns that will not burn and will withstand continuous exposure to 320F / 160C.  Highly cut resistant.

662°F: Nomex Sleeve
High Temperature Heat Resistant Nomex Braided Sleeve Wire Cable Hose Protection
Kevlar Braided Sleeve
Kevlar Braided Heavy Duty Sleeve
